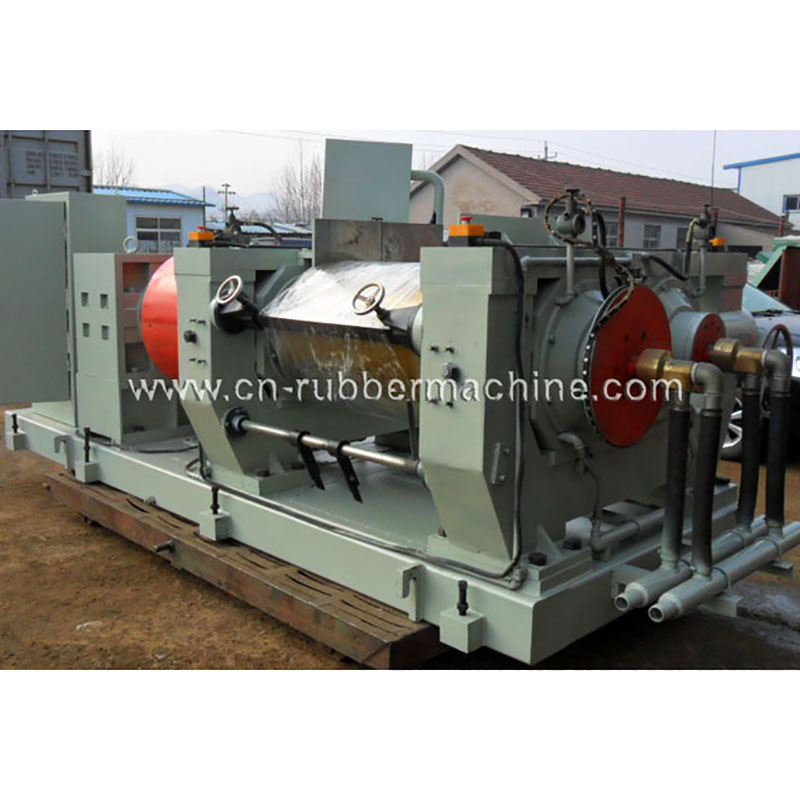

Rubber Refining Mill


Introduction:

1. Rubber Refining Mill is mainly used for removing impurity substance of reclaimed rubber.

2. According the requirement of our customers and our experience for these years, we design and manufacture different kinds of Rubber Refining Mill which are used for producing various strength reclaimed rubber.

3. Waist-dum type rolls, the rolling bearings are lubricated by lubricating grease.

Slide left & right to view full parameters

Parameter XKJ-450/510ZG-B XKJ-480/612ZG-B
Model XKJ-450/510ZG-B XKJ-480/612ZG-B
Roller D × L (mm) Front Roller: Ø450 × 1200
Rear Roller: Ø510 × 1200 		Front Roller: Ø480 × 800
Rear Roller: Ø612 × 800
Front Roller Linear Speed (m/min) 22.594 33
Rear Roller Linear Speed (m/min) 44.23 60
Front / Rear Roller Friction Ratio 1:1.957 (can design according to customers requirements) 1:1.82
Motor Model / Motor Power Y280-6-55KW Y280-6-55KW
Speed Reducer Model ZSY355-35.5 ZSYF355-28
Lubrication Mode Mechanical Oil Pump Automatic Lubrication Mechanical Oil Pump Automatic Lubrication
Roller Temperature Adjusting Device Rotary Copper Joint Rotary Copper Joint
Scraper Device Yes Yes
Rolling Device Yes Yes
Overall Dimension (L × W × H) 4800 × 1870 × 1860 4550 × 2100 × 1950
Weight (KG) 11800 11500
