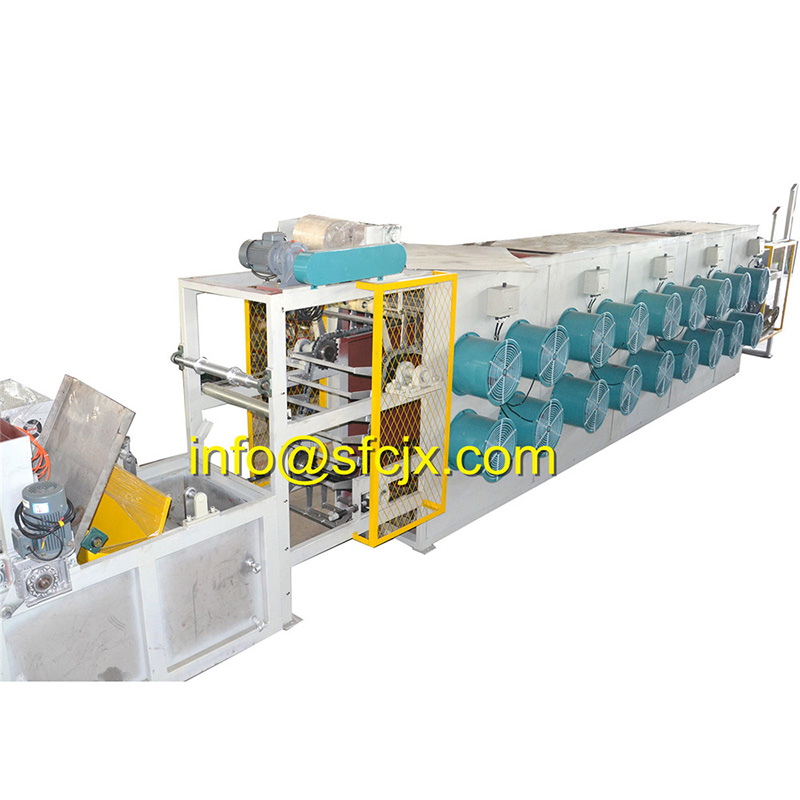

Batch off Cooler Floor Standing Type

Application:

The batch off cooler is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder.

Structure:

There are two kinds: overhead and floor-standing types.

1. Batch off cooler can coat with isolation agent, cooling and laminated storage of the rubber sheet which extruding from mixing and plastic mixing, the structure is floor-standing type. The rubber sheets running have overhead type and multilayer conveying type two kinds.

2. This batch off cooler can be equipped with coding device, lengthcutting or crosscutting, automatic swing glue; automatic laminated rubber sheet weighing and cutting, automatic sampling etc. The new type chain-type batch off cooler uses South Korean technology.

3. The rubber sheet in the chain-belt is using multi-layer reciprocating cooling method. It is suitable for cooling thin rubber sheet and no pollution rubber sheet.

Parameter/Type	XPG-600	XPW-600	XPG-800	XPG-900
Model	XPG-600	XPW-600	XPG-800	XPG-900
Structure	Floor-standing type	Chain-Belt type	Overhead type	Overhead type
Max. Rubber Sheet Width (mm)	600	600	800	900
Rubber Sheet Thickness (mm)	4-10	2-12	4-10	6-12
Temperature Over Room Temperature After Rubber Sheet Cooling (℃)	10	10	15	5
Linear Speed of Taking-In Conveyor (m/min)	3-24	3-24	3-35	4-40
Linear Speed of Sheet-Hanging Chain (m/min)	0.82	Chain-belt layer: 5	0.117-1.17	4-40
Hanging Height of the Sheet Hanging Bar (m)	1000-1500	Net	1000-1500	1400
No. of Cooling Fans (set)	12		20	18-26
Total Power (kw)	13.7		28.8	18-34
Overall Dimension L (mm)	1425		16800	26630
Overall Dimension W (mm)	4500		4700	3500
Overall Dimension H (mm)	3405		3520	5630
