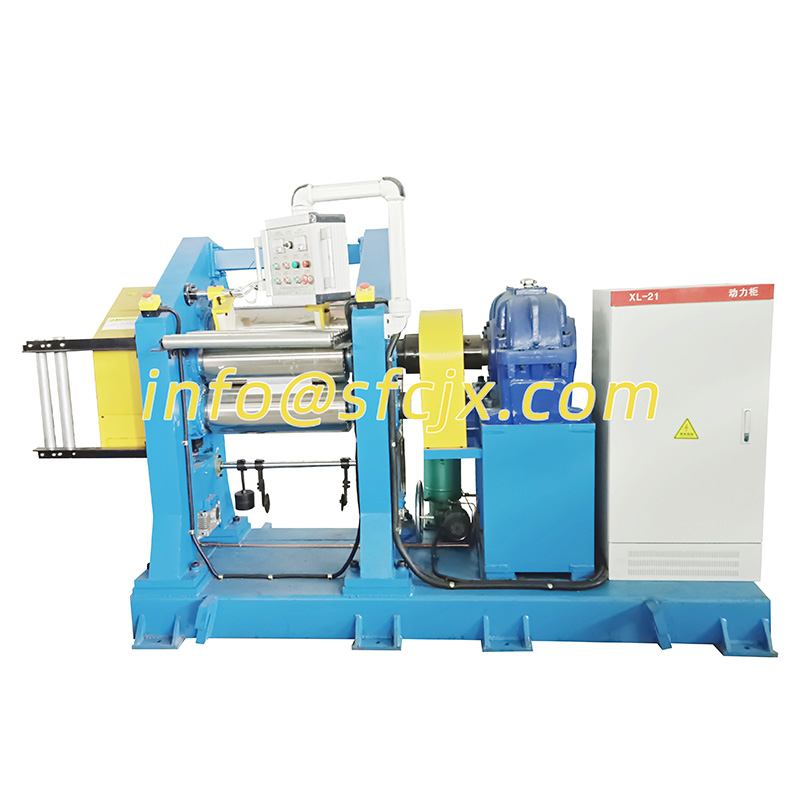

Two Roll Rubber Calender


Introduction:

1. The Rubber Calender Machine is mostly used in oppression of rubber products and textile(like cotton, rayon, nylon etc. The precision calender besides has the ordinary calender main spare part and the equipment, increased the guarantee rolling precision installment.

2. We have three-roll, four-roll and two-roll calender, should any of items be of interest to you, please contact me for further details.

3. Rubber Calender Machine is according to certain form arrangement, under certain temperature, extends the rubber or the plastic suppression certain thickness and the superficial shape film

Slide left & right to view full parameters

Parameter/Type XY-2I 320 XY-2I 620 XY-2I 1120A XY-2I 1500 XY-2I 1830 XY-2I 1730
Roll Diameter (mm) 160 250 360 450 550 610
Working Roll Length(mm) 320 620 900 1500 1830 1730
Roll Ratio 1:1 1:1 1:1 1:1 1:1.08 1:1
Roll Linear Speed (r/min) 7.79 14.8 3-20.2 2.5-24.8 2-18.7 4-36
Adjusting Nip Range (mm) 0-4.5 0-5.5 0-10 0-10 0-12 0-15
Min. product thickness(mm) 0.2 0.2 0.2 0.2 0.2 0.2
Calendaring Product Width (kg) 250 580 920 1250 1600 1500
Motor Power (KW) 5.5 15 37 45 75 90
Size(L×W×H)(mm) 2200×530×1470 3100×770×1590 5330×1542×1681 7113×1595×2446 7420×1760×2760 5987×1860×2988
