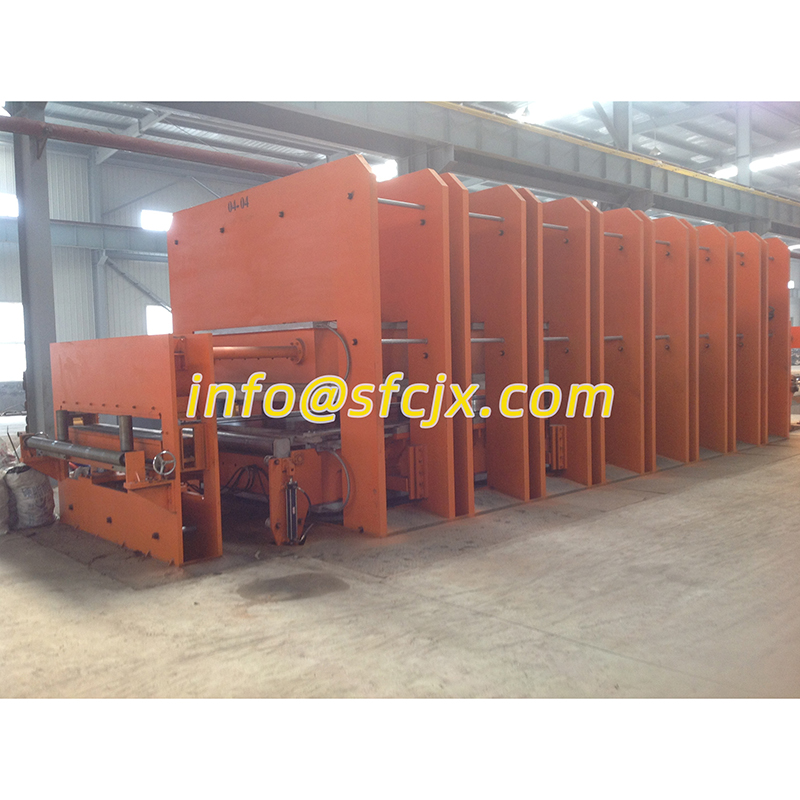

Steel Cord Conveyer Belt Vulcanizing Press

Application:

Steel Cord Conveyer Belt Vulcanizing Press is suitable for vulcanizing general rubber conveyor belt, nylon conveyor belt, PVG conveyor belt, steel wire conveyor bet and a series of rubber belt.

Characteristic:

The main unit of steel cord conveyer belt vulcanizing press is frame type, the hot plates and piston all made by quality materials, though accurate processing, they are hard to abrade or corrupt, they are easy to maintain. Has the stable pressure, easy to adjust. This Steel cord Conveyer Belt Vulcanizing Press adopts PLC control mode, so can finish all actions automatic, and can realize and regulate the temperature of hot plates, increasing the controlling, reducing the labor intensity, enhancing the efficiency.

Parameter	XLB-2700×15600×1	XLB-2400×10000×1	XLB-1800×12000×2	XLB-1800×10000×2	XLB-1600×10000×2	XLB-1600×10000×1	XLB-1600×8500×1	XLB-1400×10000×1	XLB-1400×8000×2	XLB-1400×5700×2	XLB-1200×5700×2
Hot-plate Size (mm)	2700×15600	2400×10000	1800×12000	1800×10000	1600×10000	1600×10000	1600×8500	1400×10000	1400×8000	1400×5700	1200×5700
Total Pressure (MN)	168.48	96.00	74.00	72.00	56.00	64.00	47.60	49.00	34.00	25.00	17.55
Hot-plate Unit Pressure (MN)	4.0	4.0	3.4	4.0	3.5	4.0	3.5	3.5	3.1	3.13	2.8
Plunger Diameter (mm)	600	560	500	500	450	500	500	450	400	360	500
Plunger No.	33	20	18	18	18	18	14	18	16	10	5
Max. Plunger Stroke (mm)	360	300	400	300	400	300	300	300	400	400	520
Steam Pressure (Mpa)	0.8	0.8	0.63	0.6-0.8	0.63	0.6-0.8	0.63	0.63	0.63	0.63	0.63
Cooling Water Pressure (Mpa)	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Controlling Method	PLC	PLC	PLC	PLC	PLC	PLC	PLC	PLC	PLC	PLC	PLC
Dimension (L)	15600	10000	12000	10000	10000	10000	8500	10000	8000	5700	5700
Dimension (W)	3800	3400	2900	2740	2660	2560	2980	2400	2400	2350	1800
Dimension (H)	5100	4900	3930	3660	4120	3520	3325	3580	3880	4170	3305
