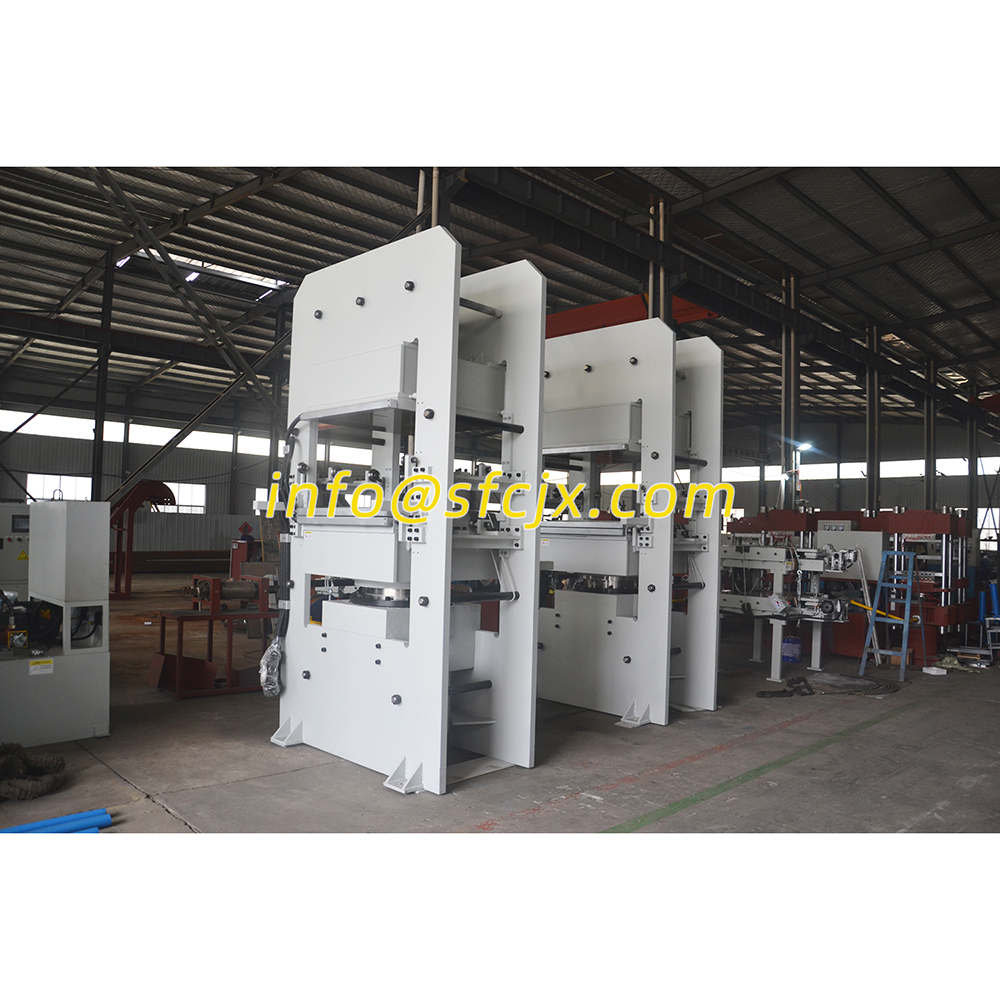

Frame Type Rubber Vulcanizing Press


To our clients, there is a wide range of hydraulic pressed components at competitive prices. These plate vulcanizing press components

are made using excellent quality raw material to ensure dimensional stability. With the help of our adept professionals, we can even customize

these components as per the specific requirements of the clients.

The plate vulcanizing press components offered by us find extensively application in the following industries:

1. Rubber Industries

2. Bakelite Mould

3. General engineering industry

Slide left & right to view all parameters

Type XLB-DQ1200×1200×2 XLB-DQ1300×2000×1 XLB-Q1200×2500×1 XLB-Q1500×2500×1 XLB-Q2000×3000×1 XLB-Q1400×5700×1
Total Pressure(T) 315t 560t 750t 1000t 1800t 2800t
Plate Size (mm) 1200×1200 1300×2000 1200×2500 1500×2500 2000×3000 1400×5700
Daylight(mm) 200 400 400 400 400 400
Layer NO. 2 1 1 1 1 1
Piston Stroke(mm) 400 400 400 400 400 400
Plate Pressure(MPa) 22 21.5 25 33.5 30 35
Main Motor (kw) 3 8 9.5 11 26 43.5
Overall Dimension(L×W×H)(mm) 1685×1320×2450 2000×1860×2500 2560×1700×2780 2810×1550×3325 2900×3200×2860 2400×5800×3600
Weight(kg) 9500 17000 20000 24000 66000 110000
