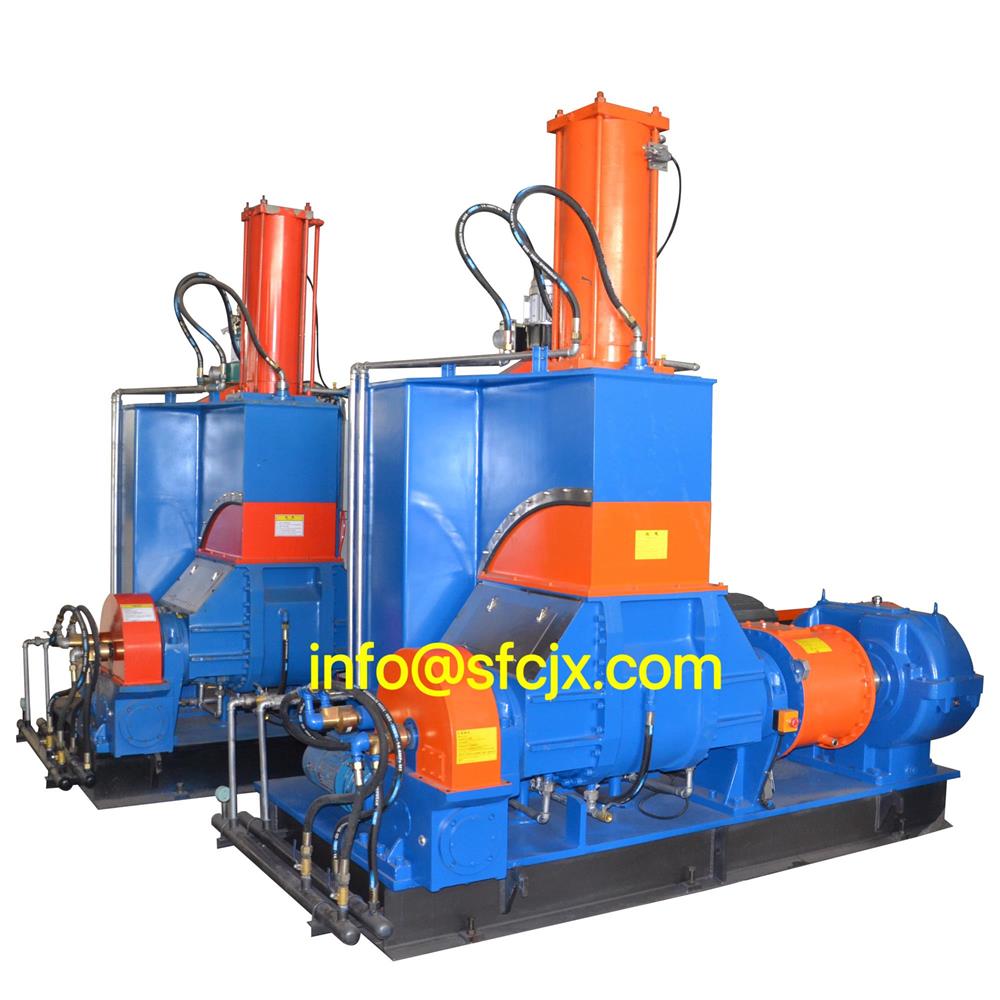

New Type Environmental Drop Type Banbury Mixer



New Type Environmental Drop Type Banbury Mixer

The new environmentally friendly banbury mixer is the  new mixing equipment in the rubber and plastic industries. Its performance indicators have reached the domestic and foreign advanced levels, with advantage of advanced and reasonable design, compact structure, small space, easy installation, high mixing efficiency, uniform mixing and dispersion, fully closed structure, new sealing design, no rubber or powder leakage .

Main Technical Parameters

Slide left & right to view full parameters

Item X(S)MX-50 X(S)MX-80 X(S)MX-110 X(S)MX-160
Total Volume 125L 170L 250L 350L
Working Volume 55L 80L 110L 160L
Rotor Type Four Arrises Rotor
Transmission Direction Left/Right Rotating
Rotor Rotating Speed 4~40 r/min
Main Motor Power 110KW 160KW 250KW 315KW
Motor Type Frequency Motor
Top Bolt Type Double Cylinder Hydraulic Drive
Pressure of Top Bolt to Material 4~6 MPa 5~8 MPa 6~8 MPa 8~10 MPa
Hydraulic Pressure 2~10 MPa 2~10 MPa 2~10 MPa 2~12 MPa
Discharging Gate Type Hydraulic Drive, Hydraulic Locking
Cooling Water Pressure 0.4~0.6MPa
Weight About 9.5Tons About 11Tons About 21Tons About 23Tons
